TECHNICAL CHARACTERISTICS
- Electrical transformer on rail (called also EURCLASS) with aeration window
- Protection Class II
- Protection degree: IP21
- PA 6,6 self-extinguishing housing
- Winding group H (200°C)
- Dielectric rigidity : 3 kV
- Maximal ambient temperature : 45°C
- Galvanized tropicalized steel brocket
- Varnish immersion group F and oven drying
- Active parts are not accessible
- Installation possibility on RAIL DIN or with holes
- Safety Standards : NF-EN 61558-1 et NF-EN 61558-2-1
PERFORMANCE TABLE

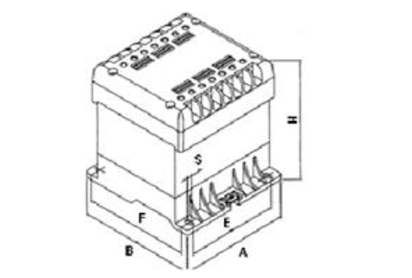

| Reference | Dimensions (mm) | |||||
|---|---|---|---|---|---|---|
| A | B | H | E | F | S | |
| 100 | 90 | 106 | 106 | 68,5 | 90 | 4,5 |
| 160 | 126 | 136 | 117 | 96 | 121 | 5,5 |
| 200 | 126 | 136 | 117 | 96 | 121 | 5,5 |
| 250 | 126 | 136 | 117 | 96 | 121 | 5,5 |
