TECHNICAL CHARACTERISTICS
- Electronic ignitors for metal halide lamps 2000 W
- Aluminium housing
- Maximal temperature of ballast : ≤ 85 ° C
- Screw terminals : 0,75-2,5 mm²
- Safety Standards : EN-61347-2-1; EN-60927 and EN-60662
PERFORMANCE TABLE

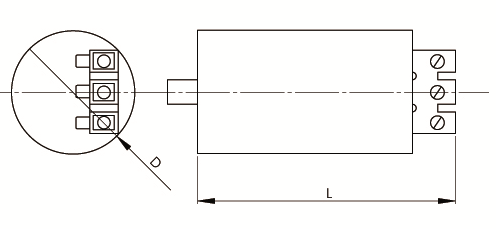

| Input voltage (V) | Frequency (Hz) | Ignition voltage (V) | Load voltage (V) | Pulse crest voltage (kV) | Current Max. (A) | Dimensions (mm) | |
|---|---|---|---|---|---|---|---|
| D | L | ||||||
| 220-240 | 50/60 | ≤ 198 | 198-264 | 3,5-5 | 18 | 90 | 45 |
