Superimposed-pulse ignitors: KZ150

Image Gallery

[sigplus] Critical error: Image gallery folder 176 is expected to be a path relative to the image base folder specified in the back-end.

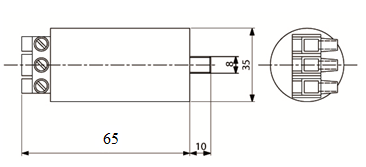

TECHNICAL CHARACTERISTICS

  • Electronic ignitors for high pressure sodium or metal halide lamps (70-150 W)
  • Aluminium housing
  • Maximal temperature of ballast : ≤ 105 ° C
  • Screw terminals : 0,75-2,5 mm²
  • Safety Standards: NF EN-61347-2-1; NF EN-60927 and NF EN-60662

PERFORMANCE TABLE

Input voltage (V) Frequency(Hz) Pulse voltage (V) Pulse crest voltage (kV) Current Max. (A)
220-240 50/60 ≤ 198 2,8-5 2
