Superimposed-pulse ignitors:KZ1000 ML

Image Gallery

[sigplus] Critical error: Image gallery folder 180 is expected to be a path relative to the image base folder specified in the back-end.

TECHNICAL CHARACTERISTICS

  • Electronic ignitors for high pressure sodium or metal halide lamps (600-1000 W)
  • Aluminium housing
  • Maximal temperature of ballast : ≤ 90 ° C
  • Screw terminals : 0,75-2,5 mm²
  • Safety Standards : EN-61347-2-1; EN-60927 and EN-60662

PERFORMANCE TABLE

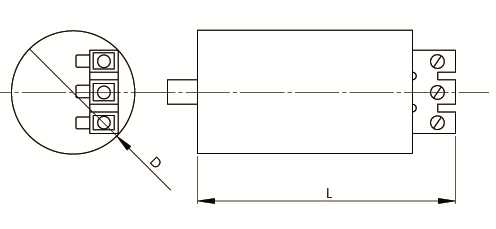

Input voltage Frequency (Hz) Ignition voltage (V) Load voltage (V) Pulse crest voltage (kV) Current Max.(A) Dimensions (mm)
D L
220-240 50/60 ≤ 198 196-264 3,5-5 12 45 90
