TECHNICAL CHARACTERISTICS
- Symmetric floodlights class I or II for lamp HID
- Protection degree: IP65
- Mechanical stress protection degree: IK08
- Housing and Gear Box in aluminum injected and treated against corrosion
- Steel support
- Shocks and heat resistance tempered glass against
- Pure anodized and brilliant aluminum reflector
- Heat resistance silicone sealing
- Waterproof connection box with gland
- Stuffing box for Ø 8-12 mm cable passing

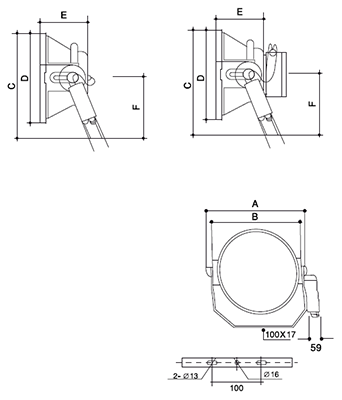

PERFORMANCE TABLE
Power (W) | Frequency (Hz) | Input voltage (V) | Lamp holder | Dimensions (mm) | |||||
---|---|---|---|---|---|---|---|---|---|
A | B | C | D | E | F | ||||
1000 | 50 | 220-240 | K12s | 531 | 470 | 500 | 451 | 250 | 300 |
1800 | 50 | 220-240 | K12s | 531 | 470 | 500 | 451 | 250 | 300 |
2000 | 50 | 380 | K12s | 531 | 470 | 500 | 451 | 250 | 300 |
