TECHNICAL CHARACTERISTICS
- Symmetric floodlights class I or II for lamp HPS or IOD
- Protection degree: IP65
- Mechanical stress protection degree: IK08
- Aluminum housing injected and treated against corrosion
- Shocks and heat resistance tempered glass fixed to the housing by 2 hinges and 2 clips in polycarbonate
- Stainless steel external screws and nuts
- Pure anodized and brilliant aluminum reflector
- Heat resistance silicone gasket
- Pure anodized and brilliant aluminum reflector
- Waterproof connection box with gland, on request
- Fixed to the support by 2 screws and external nuts M10
- Stuffing box for Ø 8 à 12 mm cable crossing
PERFORMANCE TABLE

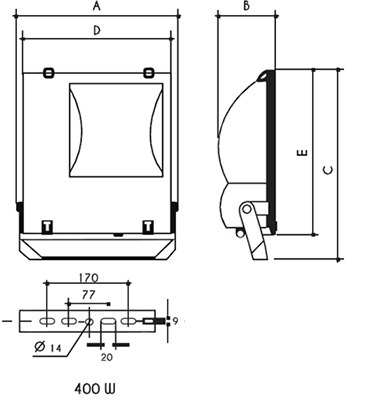

| Power (W) | Frequency (Hz) | Input voltage (V) | Lamp holder | Dimensions (mm) | ||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | ||||
| 250-400 | 50 | 220-240 | E40 | 455 | 145 | 495 | 424 | 435 |
