TECHNICAL CHARACTERISTICS
- Symetric floodlight class I or II for lamps HPS or HID
- Protection degree: IP65
- Mechanical stress protection degree: IK08
- Aluminum housing injected and treated against corrosion
- Shocks-heat resistance tempered glass fixed to the housing with 2 hinges et 4 clips in polycarbonate
- Stainless steel external screws and nuts
- Pure anodized and brilliant aluminum reflector
- Heat resistance silicone gasket
PERFORMANCE TABLE

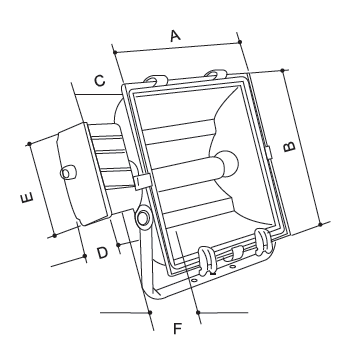

Power (W) | Frequency (Hz) | Input voltage (V) | Lamp holder | Dimensions (mm) | |||||
---|---|---|---|---|---|---|---|---|---|
A | B | C | D | E | F | ||||
1000 | 50 | 220-240 | E40 | 450 | 470 | 125 | 84 | 132 | 165 |
