TECHNICAL CHARACTERISTICS
- Asymmetric floodlights class I or II for lamp HID
- Protection degree: IP65
- Protection degree against mechanical shocks: IK08
- Aluminum housing injected and treated against corrosion
- Shocks- heat resistance tempered glass fixed to housing by 2 hinges and 2 clips in polycarbonate
- Pure anodized and brilliant aluminum reflector
- Heat resistance silicone gasket
- Possibility to change the luminous source or the power according to customer need
- Fixed to the support by 2 screws and external nuts M10
- Stuffing box for cable passing Ø 8 to 12 mm
PERFORMANCE TABLE

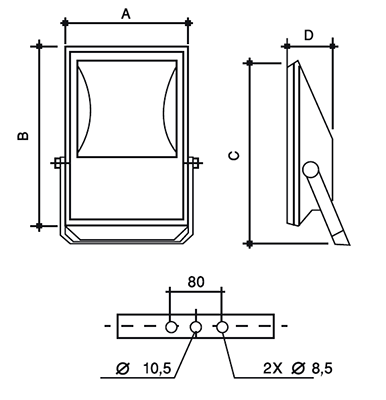

Lamp | Power (W) | Frequency (Hz) | Input voltage (V) | Lamp holder | Dimensions (mm) | |||
---|---|---|---|---|---|---|---|---|
A | B | C | D | |||||
Iodure | 70-150 | 50 | 220-240 | RX7s | 238 | 346 | 400 | 88 |
