TECHNICAL CHARACTERISTICS
- Symmetric floodlights class I or II for lamp HPS or IOD
- Protection degree: IP65
- Mechanical stress protection degree: IK08
- Aluminum housing injected and treated against corrosion
- Shocks - heat resistance tempered glass
- Stainless steel screws and nuts
- Pure anodized and brilliant aluminum reflector
- Heat resistance silicone gasket
- Housing and Gear Box paint in metalized grey by thermo-lacked polyester powder
- Stuffing box for passing the cable
PERFORMANCE TABLE

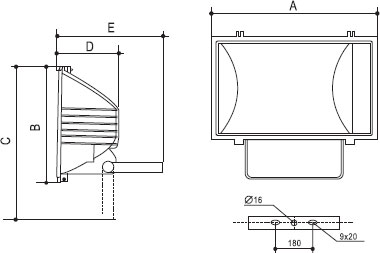

Power (W) | Frequency (Hz) | Input voltage (V) | Lamp holder (°C) | Dimensions (mm) | ||||
---|---|---|---|---|---|---|---|---|
A | B | C | D | E | ||||
1000 | 50 | 220-240 | E40 | 588 | 415 | 540 | 195 | 295 |
