TECHNICAL CHARACTERISTICS
- Symmetric floodlights class I or II for lamp HPS or HID
- Protection degree: IP65
- Mechanical stress protection degree: IK08
- Heat-shocks resistance tempered glass
- Stainless steel screws and nuts
- Pure anodized and brilliant aluminum reflector
- Heat resistance silicone gasket
- Separated type protection connecting plate with ignitor integrating fire protection wires

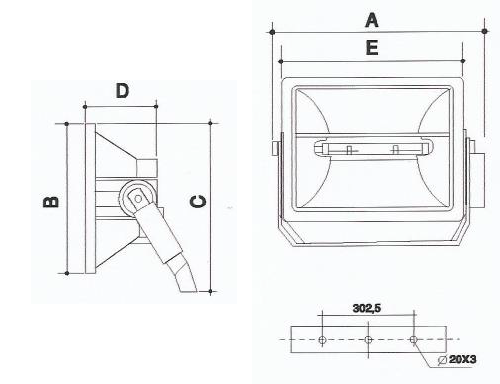

PERFORMANCE TABLE
| Lamp | Power (W) | Frequency (Hz) | Input voltage (V) | Lamp holder | Dimensions (mm) | ||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||||
| Iodure | 1000-2000 | 50 | 220-240 | E40 | 740 | 480 | 595 | 235 | 600 |
| Sodium | 1000 | 50 | 220-240 | E40 | 740 | 480 | 595 | 235 | 600 |
