TECHNICAL CHARACTERISTICS
- Electric transformer with separated coils for safety or driving
- Insulation group F
- Varnish immersion group H (180 °C) and oven drying
- Galvanized tropicalized steel brocket
- Protection class I / IP00
- Maximal ambient temperature: 45 °C
- Safety Standards : IEC 61558-1, IEC 61558-2-4, IEC 61558-2-6 and IEC 60269-1*
N.B: (*) On request, it is possible to add a fuse for the input and/or output protection
PERFORMANCE TABLE

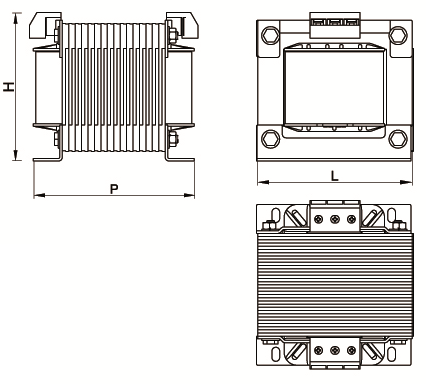

| Power (VA) | Input current (A) | Output current (A) | Weight (kg) | Dimensions (mm) | ||
|---|---|---|---|---|---|---|
| 230 V | 12 V | L | P | H | ||
| 100 | 0,43 | 8,33 | 2,1 | 96 | 75 | 95 |
| 160 | 0,7 | 13,33 | 3,2 | 96 | 85 | 95 |
| 200 | 0,87 | 16,67 | 4,2 | 120 | 85 | 102 |
| 300 | 13,04 | 25 | 5 | 120 | 95 | 115 |
| 400 | 1,74 | 33,33 | 5,8 | 120 | 105 | 115 |
| 630 | 2,74 | 52,5 | 9,5 | 150 | 100 | 150 |
| 1000 | 4,35 | 83,33 | 15,5 | 150 | 135 | 190 |
