HPS/HID-70

Image Gallery

[sigplus] Critical error: Image gallery folder 246 is expected to be a path relative to the image base folder specified in the back-end.

TECHNICAL CHARACTERISTICS

  • Magnetic ballast for HPS/HID lamps 70W
  • Winding class H (200°C)
  • Thermal class (tw) :130°C
  • Max. increase of temperature above ambient temperature (ΔT) : 70°C
  • Resin impregnation and oven drying
  • Protection class I
  • Compensation with capacitor 10/12 μF ±10%
  • Dielectric stiffness : > 2000 V
  • Screw terminals : 0,75-2,5 mm²
  • Safety standards: NF EN-61 347 and NF EN- 60 923

PERFORMANCE TABLE

Power (W) Voltage (V) Frequency (Hz) Power factor Weight (kg) Current at. 230 V (A) Dimensions (mm)

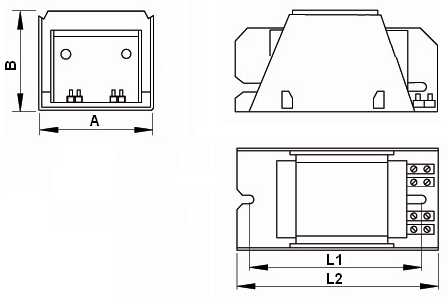

A B L1 L2
70 220-240 50 0,38 1,17 1 68 55 84 100
