TECHNICAL CHARACTERISTICS
- Magnetic ballast for HPS/HID lamps 70W
- Winding class H (200°C)
- Thermal class (tw) :130°C
- Max. increase of temperature above ambient temperature (ΔT) : 70°C
- Resin impregnation and oven drying
- Protection class I
- Compensation with capacitor 10/12 μF ±10%
- Dielectric stiffness : > 2000 V
- Screw terminals : 0,75-2,5 mm²
- Safety standards: NF EN-61 347 and NF EN- 60 923
PERFORMANCE TABLE

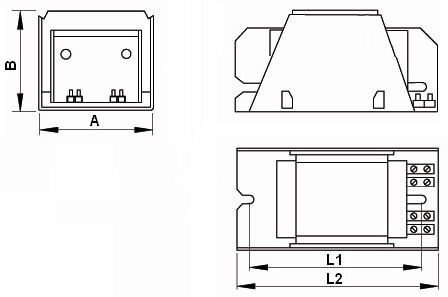

| Power (W) | Voltage (V) | Frequency (Hz) | Power factor | Weight (kg) | Current at. 230 V (A) | Dimensions (mm) | |||
|---|---|---|---|---|---|---|---|---|---|
| A | B | L1 | L2 | ||||||
| 70 | 220-240 | 50 | 0,38 | 1,17 | 1 | 68 | 55 | 84 | 100 |
