TECHNICAL CHARACTERISTICS
- Magnetic ballast for SHP/HID lamps 250W
- Winding class H (200°C)
- Thermal class (tw) :130°C
- Max. increase of temperature above ambient temperature (ΔT) : 70°C
- Resin impregnation and oven drying
- Protection class I
- Compensation with capacitor 16 μF ±10%
- Dielectric stiffness : > 2000 V
- Screw terminals: 0,75-2,5 mm²
- Safety standards: NF EN-61 347 & NF EN- 60 923
PERFORMANCE TABLE

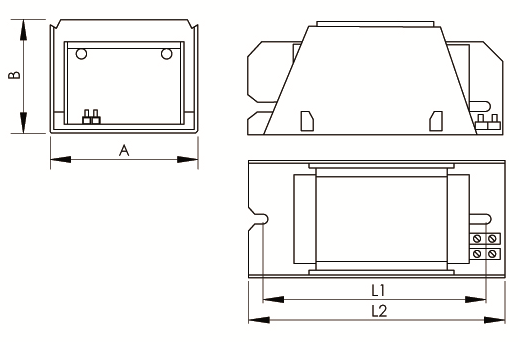

Power (W) | Voltage (V) | Frequency (Hz) | Power factor | Weight (kg) | Current at. 230 V (A) | Dimensions (mm) | |||
---|---|---|---|---|---|---|---|---|---|
A | B | L1 | L2 | ||||||
250 | 220-240 | 50 | 0,55 | 2,05 | 2,13 | 68 | 56 | 102 | 126 |
