TECHNICAL CHARACTERISTICS
- Magnetic ballast for flat or narrow lamps
- Resin impregnation and heating
- Protection class I
- Compensation with capacitor 4 μF ±10%
- Dielectric stiffness : > 1500 V
- Screw terminals : 0,75-2,5 mm²
- Safety Standards : NF EN-61 347 & NF EN- 60 921
PERFORMANCE TABLE

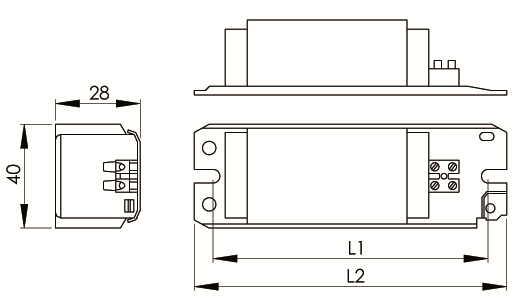

| Power (W) | Voltage (V) | Frequency (Hz) | Power factor | Weight (kg) | Current at 230 V (A) | Dimensions (mm) | |
|---|---|---|---|---|---|---|---|
| L1 | L2 | ||||||
| 26 | 220-240 | 50 | 0,5 | 0,45 | 0,325 | 100 | 110 |
