FB-18/20

Image Gallery

[sigplus] Critical error: Image gallery folder 211 is expected to be a path relative to the image base folder specified in the back-end.

TECHNICAL CHARACTERISTICS

  • Magnetic ballast for flat or narrow lamps
  • Resin impregnation and oven drying
  • Protection class I
  • Compensation with capacitor 3,5 μF ±10%
  • Dielectric stiffness : > 1500 V
  • Screw terminals : 0,75-2,5 mm²
  • Safety Standards : NF EN-60 620 & NF EN- 60 921

PERFORMANCE TABLE

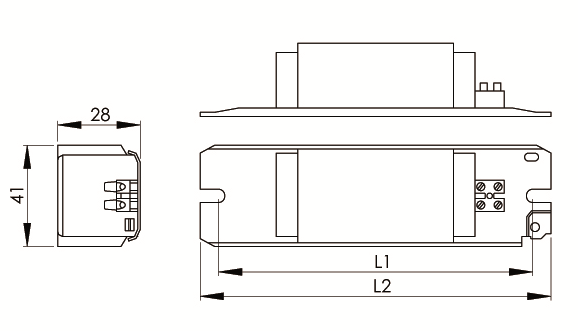

Power (W) Voltage (V) Frequency (Hz) Power factor Weight (kg) current at 230 V (A) Dimensions (mm)
L1 L2
18/20 220-240 50 0,34 0,520 0,37 140 155
