TECHNICAL CHARACTERISTICS
- Asymmetric floodlights class I or II for lamp HPS or HID
- Protection degree: IP65
- Mechanical stress protection degree : IK08
- Aluminum housing injected and treated against corrosion
- Shocks and heat resistance tempered glass
- Stainless steel external screws and nuts
- Pure anodized and brilliant aluminum reflector
- Heat resistance silicone gasket
- Steel bracket

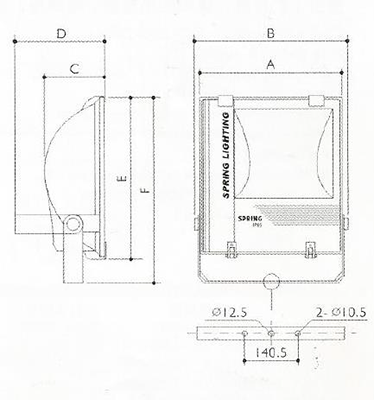

PERFORMANCE TABLE
Power (W) | Lamp holder (Hz) | Input voltage (V) | Frequency (Hz) | Dimensions (mm) | |||||
---|---|---|---|---|---|---|---|---|---|
A | B | C | D | E | F | ||||
400 | E40 | 220-240V | 50 | 416 | 445 | 148 | 255 | 460 | 540 |
