Capacitors

Image Gallery

[sigplus] Critical error: Image gallery folder 245 is expected to be a path relative to the image base folder specified in the back-end.

TECHNICAL CHARACTERISTICS

  • Lighting capacitors for phase compensation (increase the cos φ)
  • Used for fluorescent and discharge lamps
  • Parallel connection
  • Self-extinguishing plastic housing
  • Polypropylene metallized film winding
  • Operating temperature: -25/85°C
  • Integrated discharging resistance (maximum 50 V in 1 minute)
  • Loss factor: ≤ 5 x 10-4 at 250 V and 20°C
  • Safety Standards: EN 61048 and EN 61049

PERFORMANCE TABLE

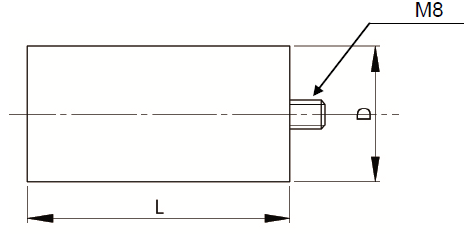

Capacity (μF) Nominal voltage (V) Frequency (Hz) Discharge resistance (kΩ) Operating temperature Min / Max (°C) Dimensions (mm)
L D
3,25±10% 250 50/60 1000 -25/85 65 30
4,5 ±10% 250 50/60 1000 -25/85 65 29
8 ±10% 250 50/60 1000 -25/85 60 30
9 ±10% 250 50/60 1000 -25/85 75 35
10 ±10% 250 50/60 1000 -25/85 75 34
12 ±10% 250 50/60 1000 -25/85 75 34
16 ±10% 250 50/60 1000 -25/85 75 34
18 ±10% 250 50/60 1000 -25/85 75 34
30 ±10% 250 50/60 1000 -25/85 99 41
32 ±10% 250 50/60 1000 -25/85 80 42
45 ±10% 250 50/60 1000 -25/85 100 45
60 ±10% 250 50/60 1000 -25/85 97 50
90 ±10% 250 50/60 1000 -25/85 110 50
